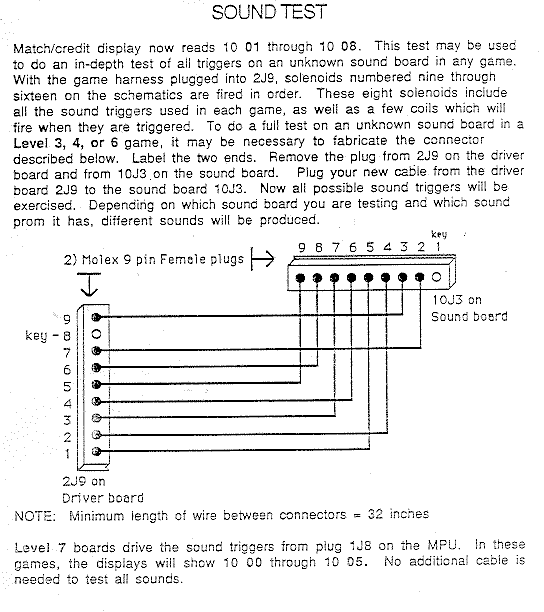

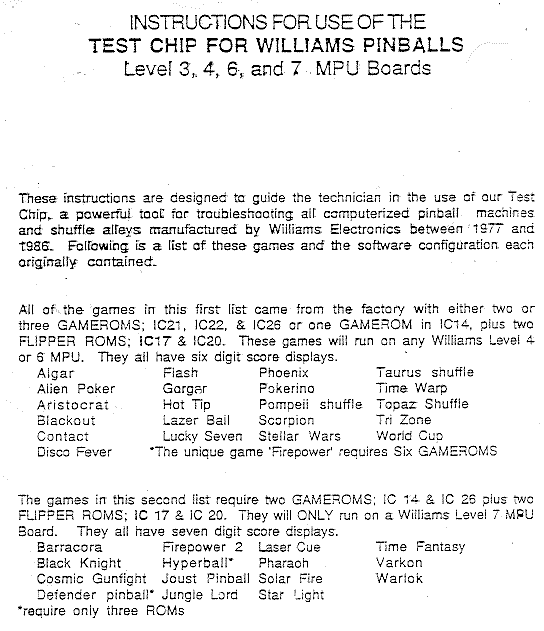

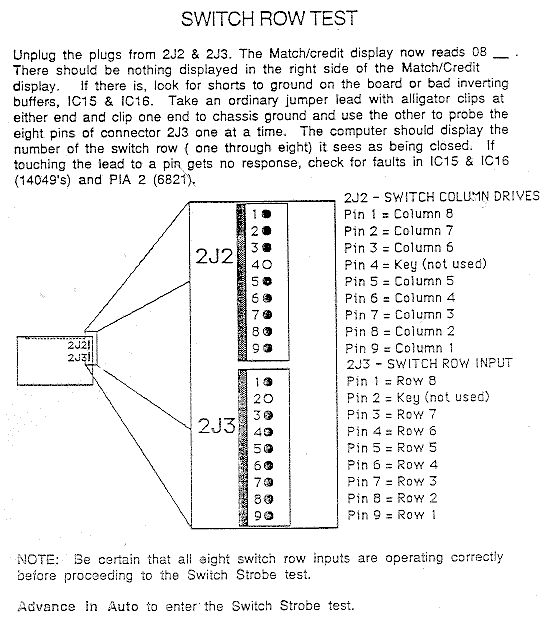

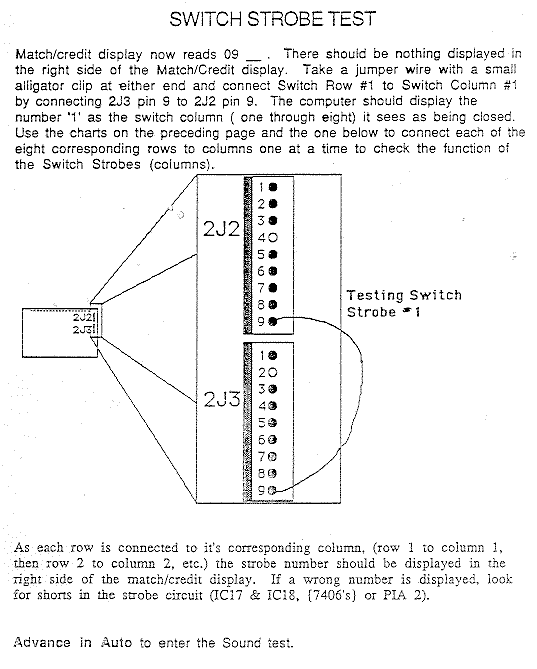

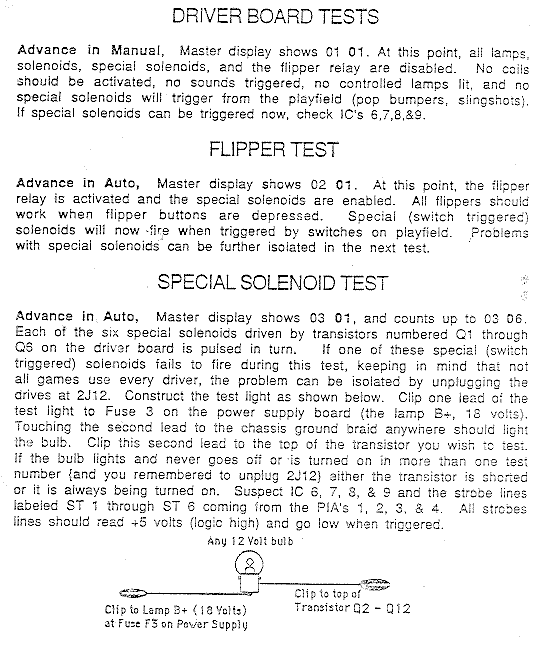

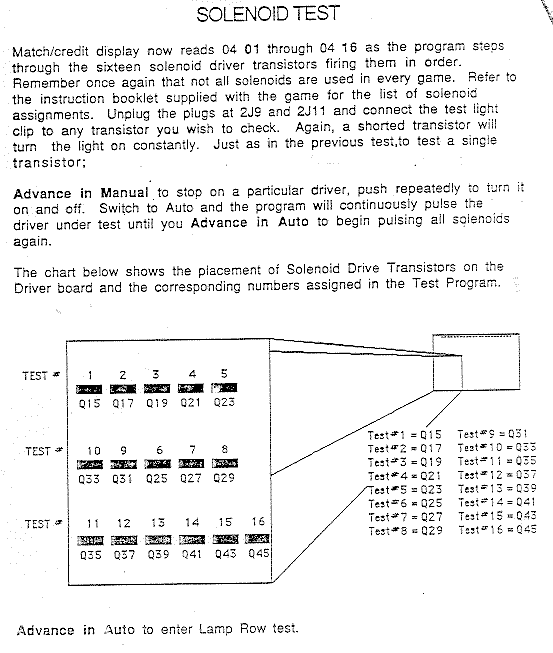

Williams System3-System6 Test ROM instructions.
Marvin3m.com

2716 ROM version (system3-6)
2532/2732 ROM version (system7)
Software is the same for both, just formatted differently.

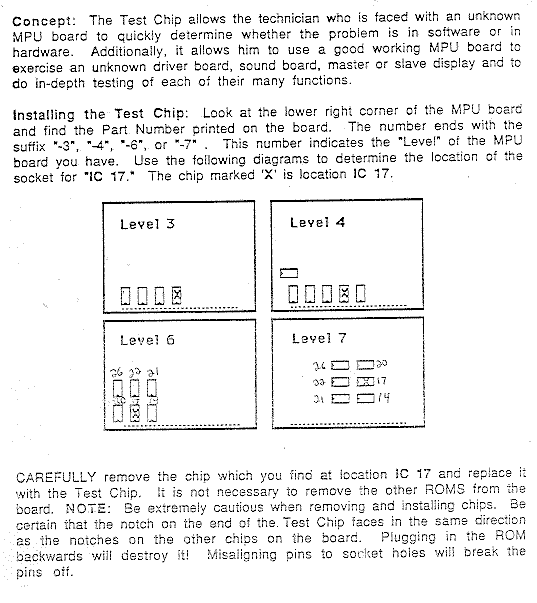

Plugs into the CPU board at IC17.
